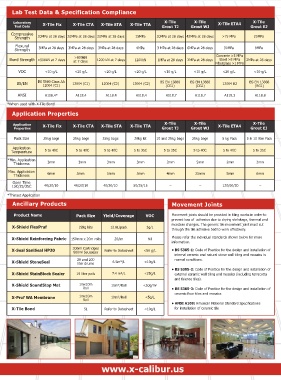

Page 4 - Tiling Selector Chart
P. 4
Lab Test Data & Specification Compliance
Laboratory X-Tile X-Tile X-Tile ETA4 X-Tile
Test Data X-Tile Fix X-Tile CTA X-Tile STA X-Tile TTA Grout TJ Grout WJ Grout EJ
Compressive 20MPa at 28 days 20MPa at 28 days 20MPa at 28 days 15MPa 20MPa at 28 days 42MPa at 28 days >75 MPa 20MPa
Strength
Flexural
Strength 3MPa at 28 days 3MPa at 28 days 3MPa at 28 days 4MPa 3 MPa at 28 days 6MPa at 28 days 30MPa 8MPa
Concrete >3 MPa
>800kN
Steel >8 MPa
Bond Strength >500kN at 7 days at 7 days 1200 kN at 7 days 1200kN 1MPa at 28 days 2MPa at 28 days Fiberglass >1 MPa 2MPa at 28 days
VOC <10 g/L <20 g/L <20 g/L <20 g/L <10 g/L <10 g/L <20 g/L <10 g/L
BS.5980 Class AA
BS/EN BS EN.12004 (C1) BS EN.12004 BS.EN.12004 BS.EN.12004 BS.EN.13888 BS.EN.13888 BS.EN.12004 (R2) BS.EN.13888
(C1)
(CG1)
(RG1)
(CG1)
(C2)
(C2)
ANSI A118.4* A118.4 A118.4 A118.4 A118.7 A118.7 A118.3 A118.8
*When used with X-Tile Bond
Application Properties
Application X-Tile Fix X-Tile CTA X-Tile STA X-Tile TTA X-Tile X-Tile X-Tile ETA4 X-Tile
Properties Grout TJ Grout WJ Grout EJ
Pack Size 25kg bags 25kg bags 25kg bags 20kg kit 10 and 25kg bags 25kg bags 5 kg Pack 5 & 10 liter Pack
Application
Temperature 5 to 40C 5 to 40C 5 to 40C 5 to 35C 5 to 35C 5 to 40C 5 to 40C 5 to 35C
Min. Application
Thickness 3mm 3mm 3mm 3mm 2mm 5mm 2mm 2mm
Max. Application 6mm 5mm 5mm 5mm 4mm 25mm 5mm 6mm
Thickness
Open Time
15C/25/35C 40/20/10 40/20/10 40/20/10 50/25/15 NA NA 120/60/30 NA
Ancillary Products Grout Color Chart
Product Name Pack Size Yield/Coverage VOC
X-Shield FlexPruf 22kg kits 12.8L/pack 3g/L
Pantone
X-Shield Reinforcing Fabric 150mm x 20m rolls 20/lm Nil White DS 22-9 C Pantone Pantone
461 C
7499 C
X-Seal SaniSeal HP20 300ml Cartridges Refer to Datasheet <50 g/L
600ml Sausages
X-Shield StoneSeal 20 and 200 6.5m²/L <10g/L
liter drums
X-Shield StainBlock Sealer 19 liter pails 7.4 m²/L <25g/L Pantone Pantone Pantone Pantone
7512 C
726 C
4655 C
475 C
X-Shield SoundStop Mat 1mx10m 10m²/Roll <50g/m 2
Roll
X-Pruf WA Membrane 1mx10m 10m²/Roll <5g/L
Roll
Pantone
Pantone
X-Tile Bond 5L Refer to Datasheet <10g/L Cool Grey 3 C Cool Grey 9 C Pantone Black
425 C
www.x-calibur.us
